2018 Cadillac Escalade Fuse Box Diagram. 2011 Cadillac Escalade fuse box diagram StartMyCar Fuse box diagram (fuse layout), location and assignment of fuses and relays of Cadillac Escalade (2014, 2015, 2016, 2017, 2018). Fuse box diagrams for Cadillac Escalade (K2XL; 2015, 2016, 2017, 2018, 2019, and 2020), including the location of blocks, a list of fuses and relays, and their assigning.
Fuse Box Diagram Cadillac Escalade (GMT 800; 20012006) from fuses-diagram.com
Fuse boxes change across years, pick the year of your vehicle: 2015-2018: SEO (optional equipment option) / Automatic level control 2019-2020: SEO (optional equipment.
This material discusses in detail the fuse diagrams of the Cadillac Escalade (GMT K2XL; fourth generation): 2014 Fuse box diagram (fuse layout), location and assignment of fuses and relays of Cadillac Escalade and Escalade ESV (2014, 2015, 2016, 2017, 2018) use the spec. This material discusses in detail the fuse diagrams of the Cadillac Escalade (GMT K2XL; fourth generation): 2014

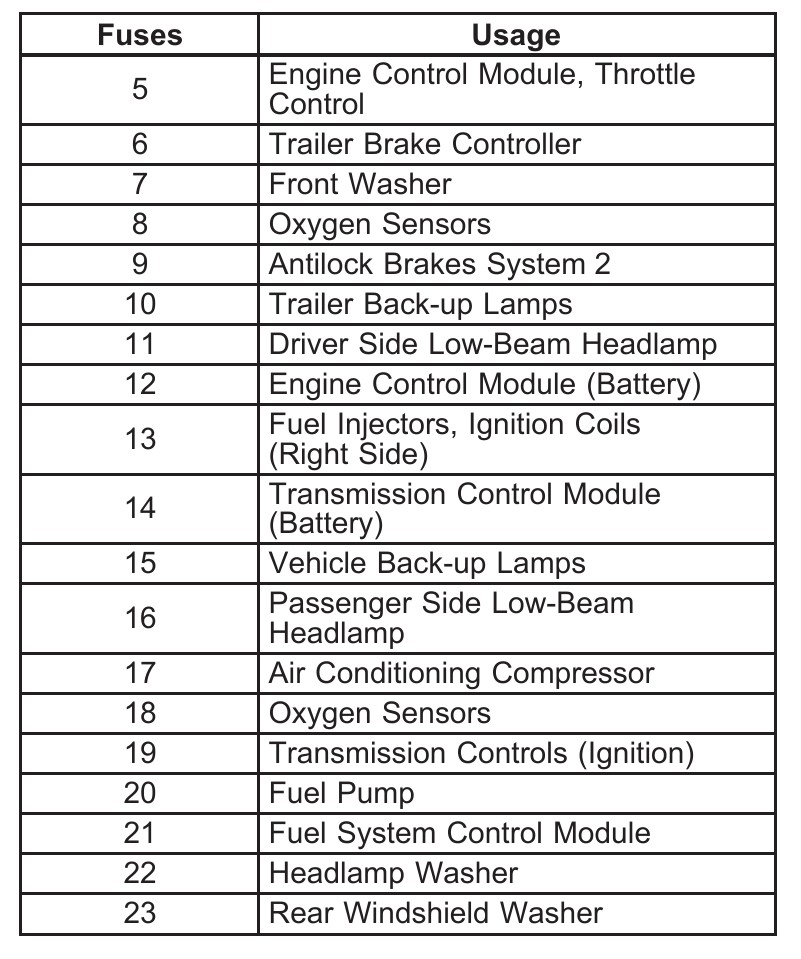

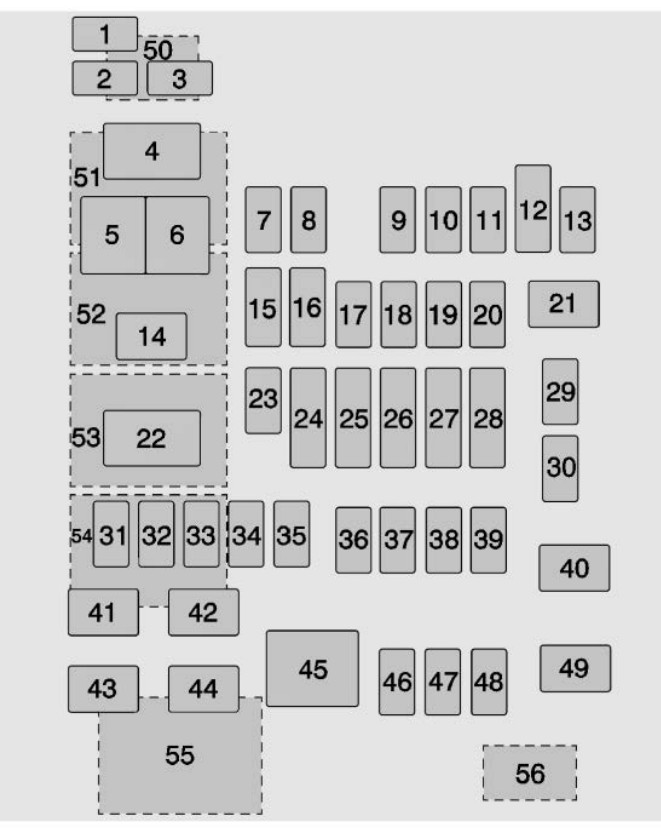

Fuse Box Diagrams Cadillac Escalade (K2XL; 20152020). Fuse box diagram (fuse layout), location and assignment of fuses and relays of Cadillac Escalade (2014, 2015, 2016, 2017, 2018). Fuse Layout Cadillac Escalade 2015-2020 Cigar lighter / power outlet fuses in the Cadillac Escalade are the fuses №4, 6 and 50 in the Left Instrument panel fuse box, fuses №3 and 50 in the Right Instrument panel fuse box, and fuse №14 (Rear Accessory Power Outlet) in the Rear compartment fuse box.

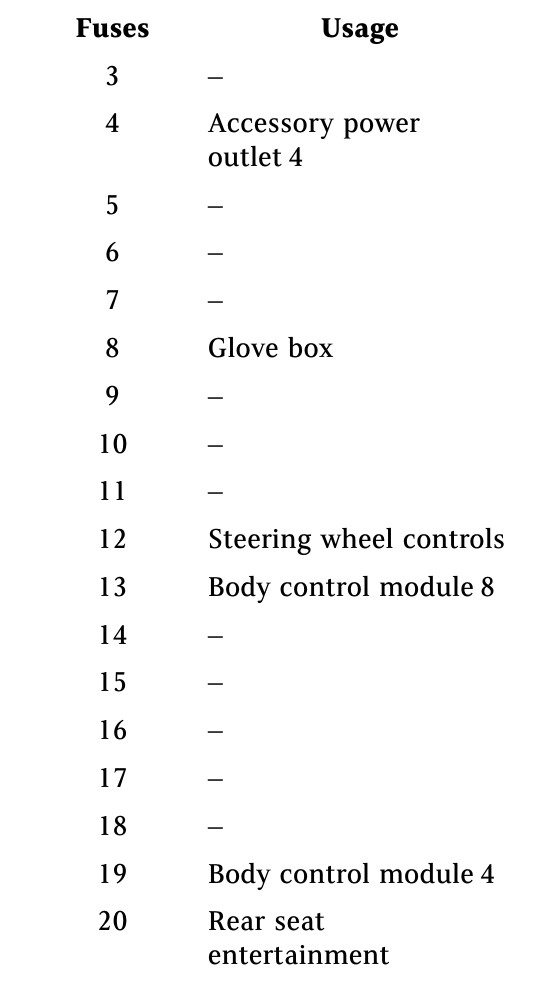

Cadillac Escalade Complete Fuse Block / Box locations Relays. Cadillac Escalade GMT K2XL (2015-2020) - fuse and relay box Fuse box diagram (left side) Number Description; 1: Not used: 2: Not used: 3: Not used: 4: Accessory power socket 1: 5: 2015-2016: Retained accessory capacity / accessories
